3D Combined Welding Fixtures from China manufacturer - SHENZHEN DING SHENG TIAN TECHNOLOGY CO.,LTD

Price:	100.0~1000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Packing: wooden cases or customised

3D Combined Welding Fixture: 100usd

Production Capacity: 5000sets

Delivery Date: 35 days after confirmation

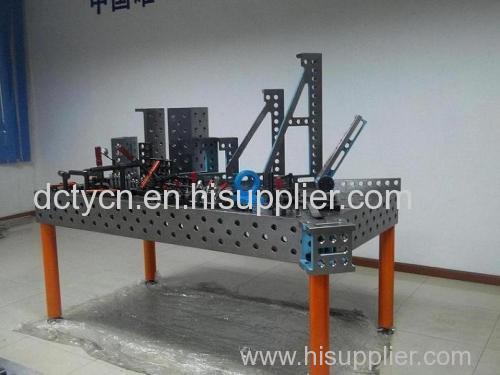

A 3D flexibly combined welding fixture is made up of a set of standard, systematic and unitized prefabricated parts.

A 3D flexibly combined welding fixture is made up of a set of standard, systematic and unitized prefabricated parts. By means of hole alignment and pin locking, all parts can be connected, fixed and clamped. The distance between parts can be adjusted according the sizes of workpiece. Since this whole fixture combines a set of parts in a three dimensional way to have best performance in welding process, therefore it is named 3D flexibly combined welding fixture. It can be classified into two groups: D28 series with ¢ 28mm hole and 100*100mm groove lines; D16 series with ¢ 16mm hole and 50*50mm groove lines.

Economical

3D flexibly combined welding fixture applies to various working conditions without the need of any modification; therefore, it helps you to save much cost instead of reserving a lot of traditional fixtures which are complicated and expensive. In addition, 3D flexibly combined welding fixture is easy and safe to operate.

Flexible
3D welding table is solid enough to bear extremely heavy loads. It has five surfaces, and each of them has regular holes and grid lines (no inclined holes or T-shaped grooves). Any workpiece can be fixed and clamped on the 3D welding table with locating pins. 3D welding tables can link together against any of its five surfaces. Depending on the unitized models, the welding table can be used in fixing, adjusting and clamping workpieces.

Precise
In the process of assembling or welding, almost all workpieces can be fixed precisely at certain points or surfaces with locating piece, adapting piece, fastening piece and supporting piece, except quite few workpieces. The imprecise dimensions of workpiece can easily be detected and then be adjusted during preliminary working process.

Repeatable
It is easy to use existing parts in the workshop to imitate workpiece assembly via CAD.

Application
3D flexibly combined welding fixture gives up traditional way of fixing and clamping workpiece, and facilitates the innovation in new techniques. Depending on our unremitting efforts and along with the industrial development, our 3D flexibly combined welding fixtures have been widely applied in the manufacturing and processing of machines, machining equipments, railways and tracks, automobiles, motorcycles, ships, pressurized containers, sheet metals, chassis and cabinets, testing and measurement instruments and steel constructions. We have been highly appraised by the market and our welding fixtures help clients to greatly improve production efficiency. We will keep developing new products to promote domestic industrial development.
